HADES 3
Hades 3 provides reliable remote access beneath structures, allowing inspectors to visually assess conditions and identify potential issues in hard to reach spaces. A strong, waterproof constructions means Hades 3 can crawl through just about any area.
-
HADES 3T
Equipped with visual and thermal imaging, Hades 3T helps operators see more. High resolution thermal imaging allows inspectors to clearly identify moisture, damage, and thermal anomalies without entering the space.
-
HADES 3X
Coming soon...
FEATURES

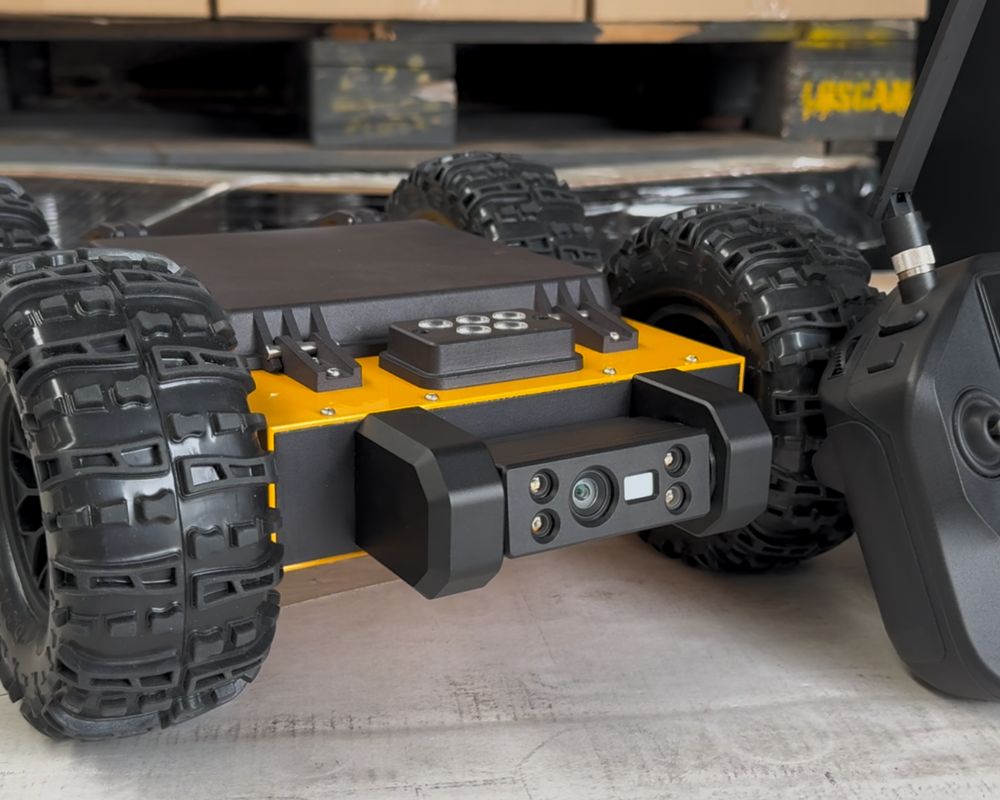

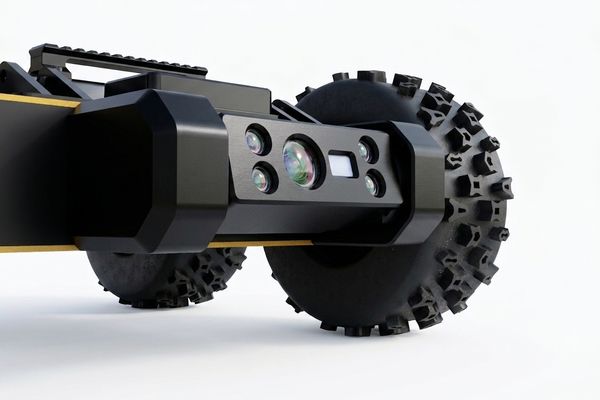

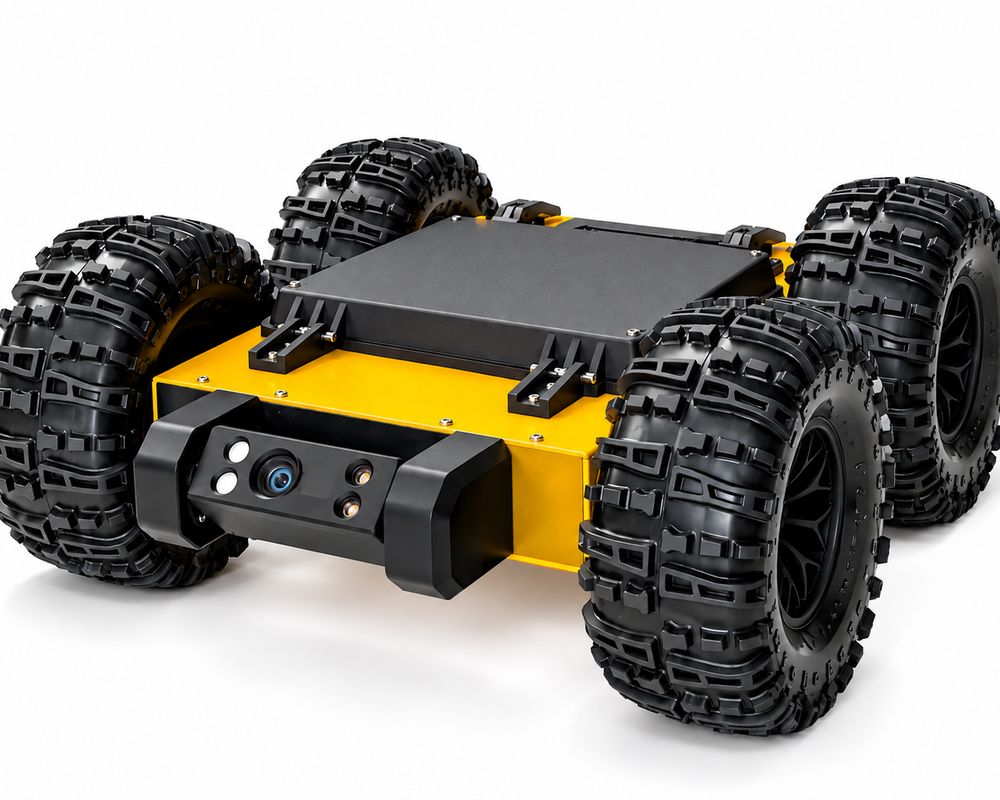

Tilting Camera Head

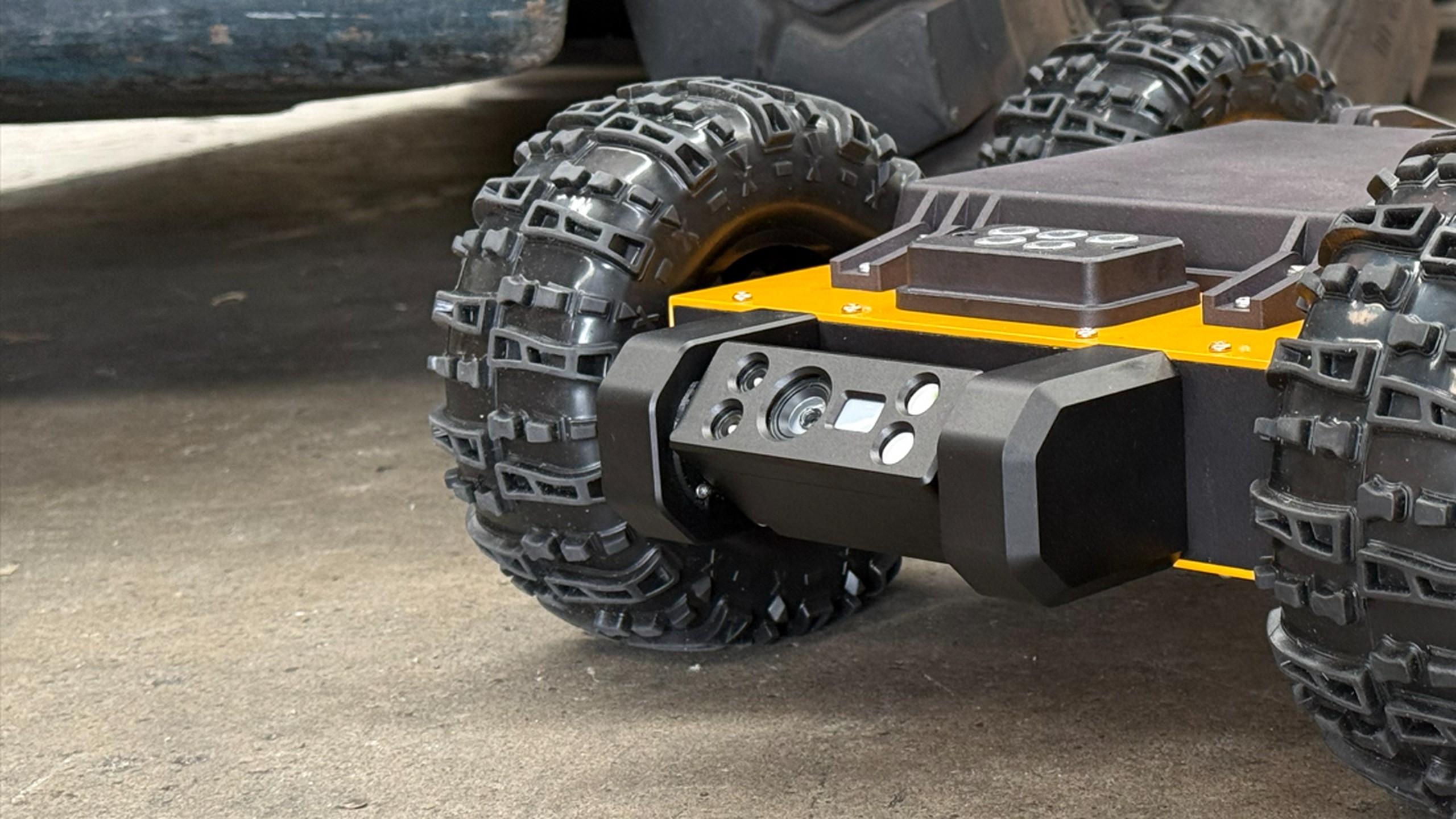

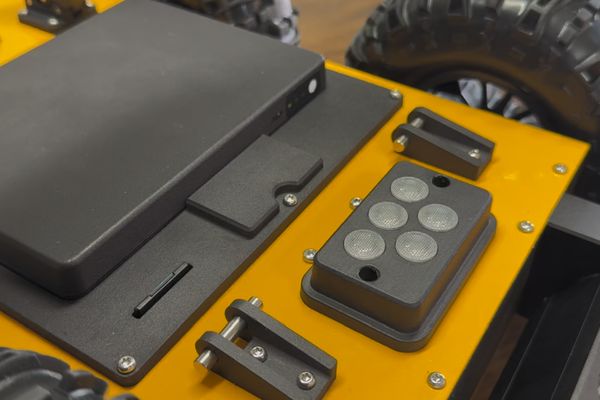

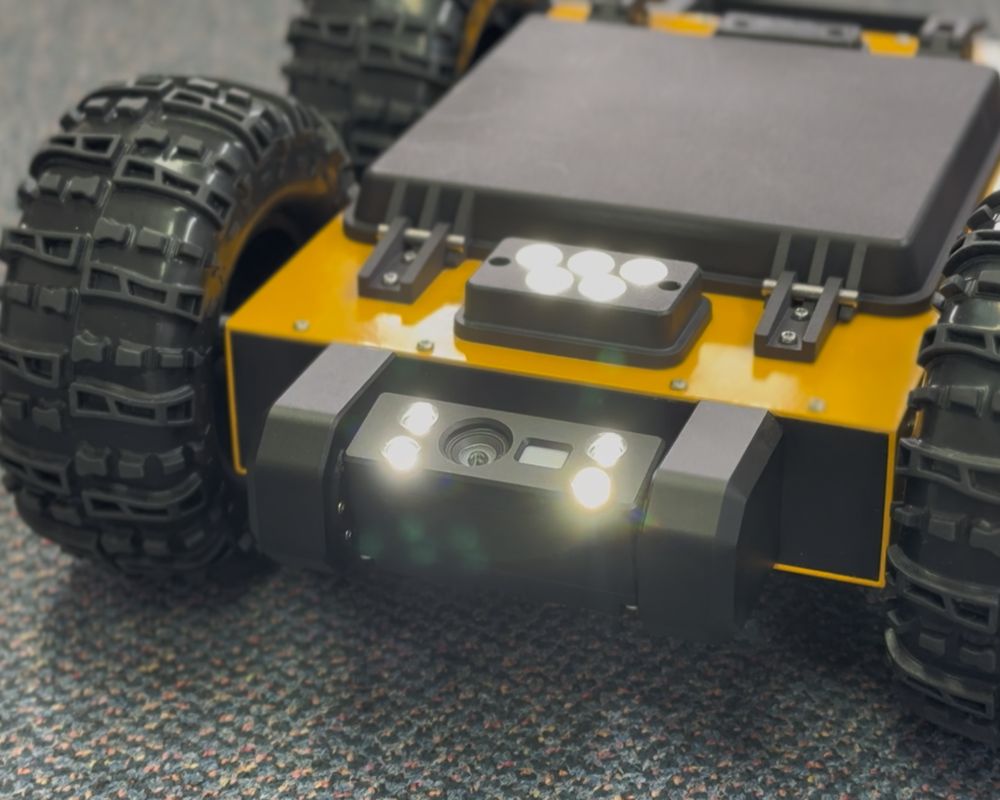

Hades features a 180° tilting camera providing comprehensive visibility to the operator. Integrated LED lights deliver consistent illumination in dark, confined spaces. For advanced inspections, an optional thermal camera is available to help identify moisture intrusion, heat loss, and other hidden issues not visible with standard imaging.
Durable Design

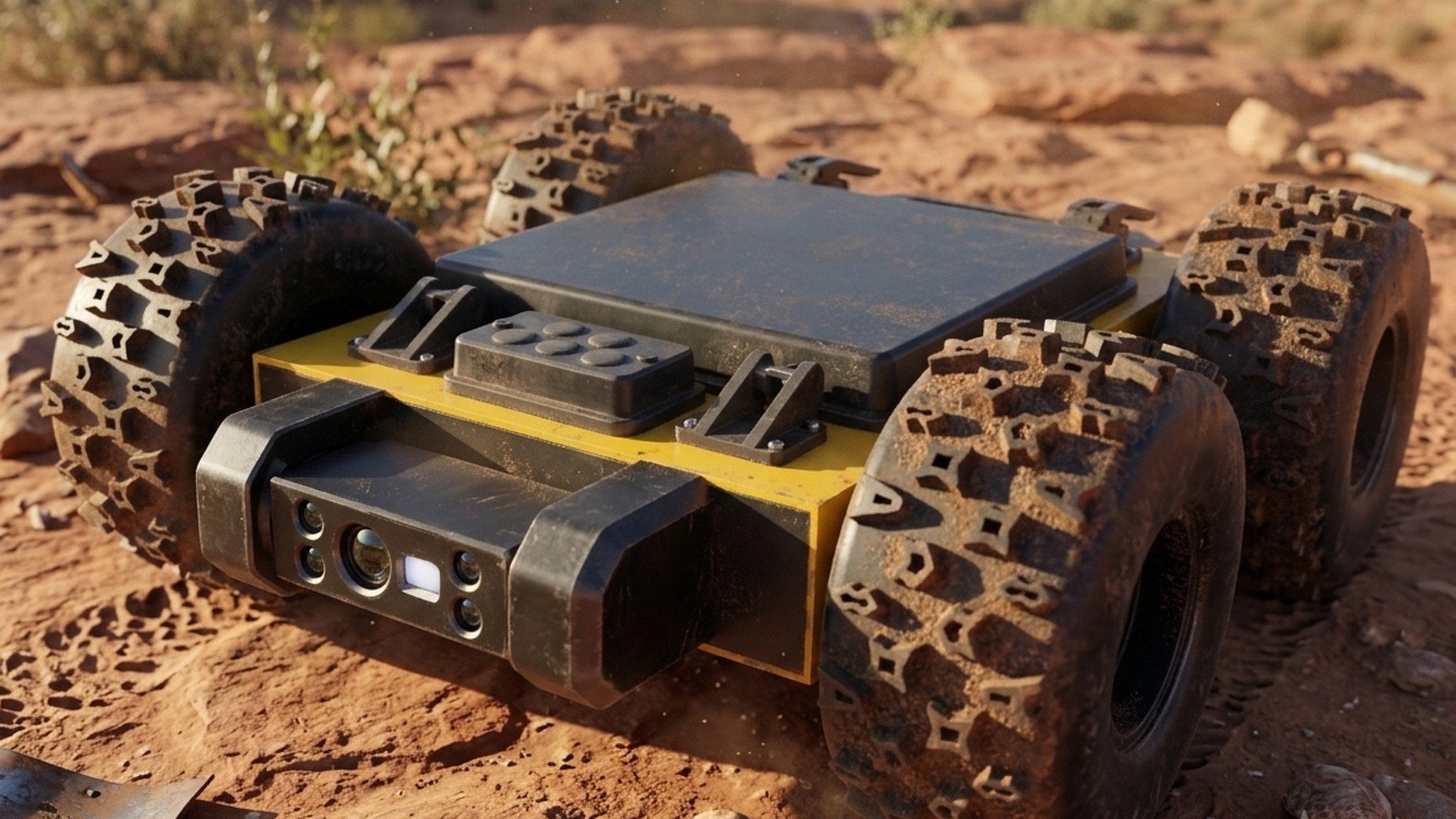

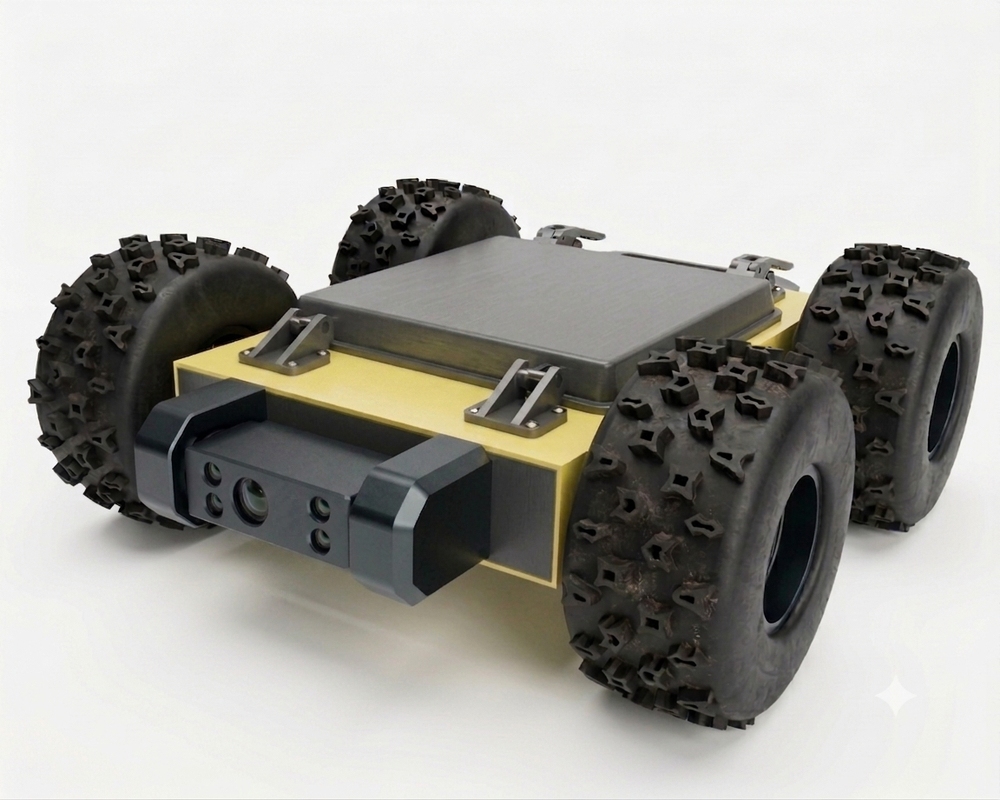

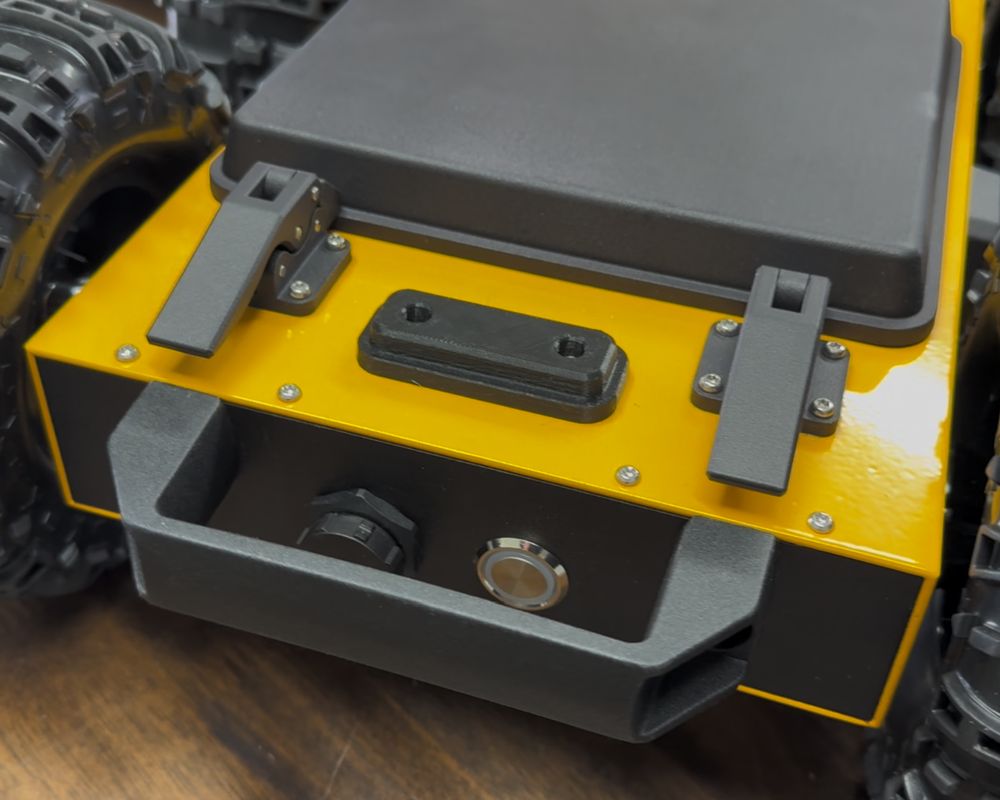

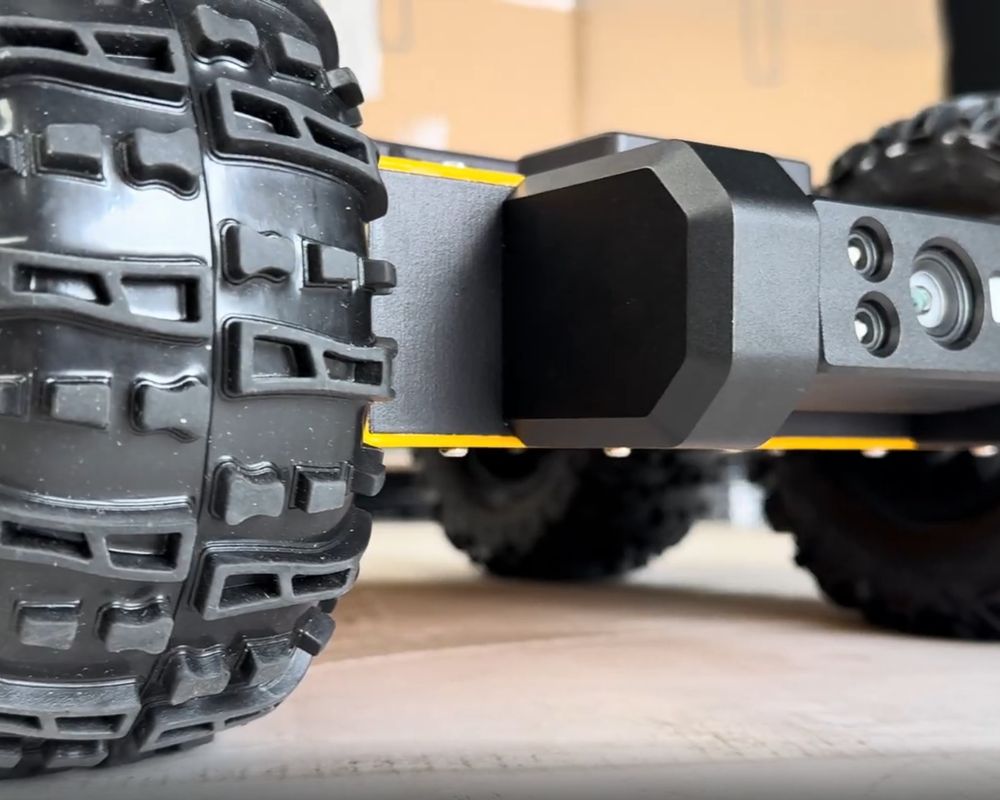

Hades is built on a rugged aluminum frame designed to thrive in demanding environments. Large, high-traction tires provide stable movement over uneven surfaces and debris, while a water proof construction protects internal components in wet and dirty spaces.

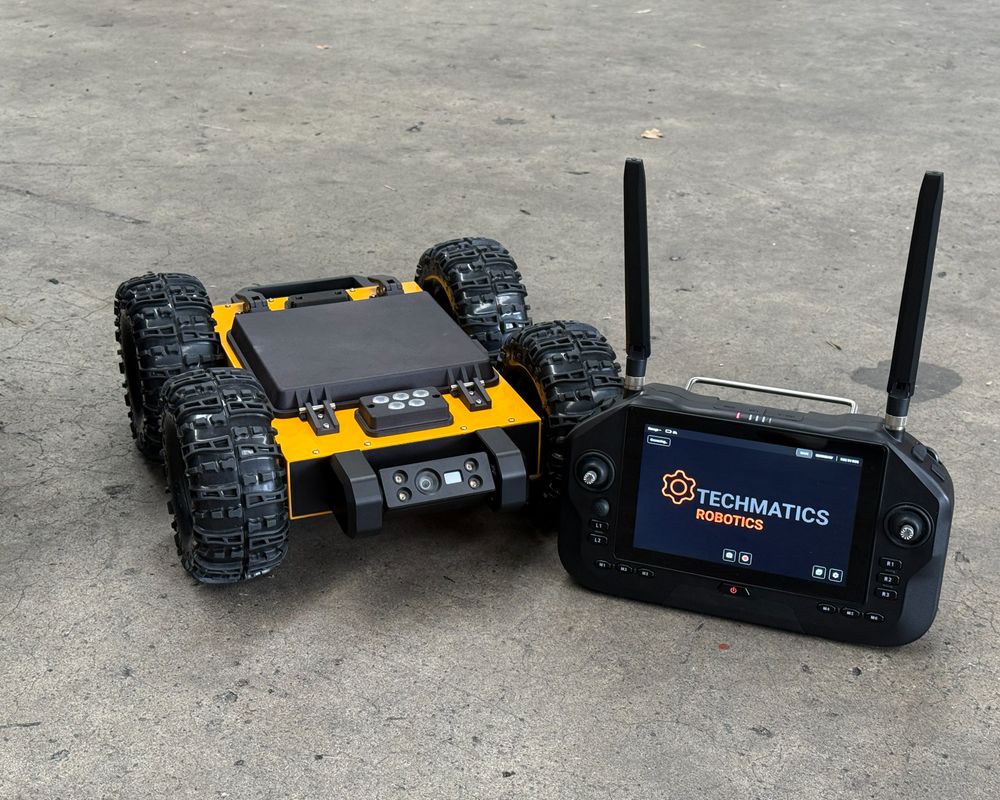

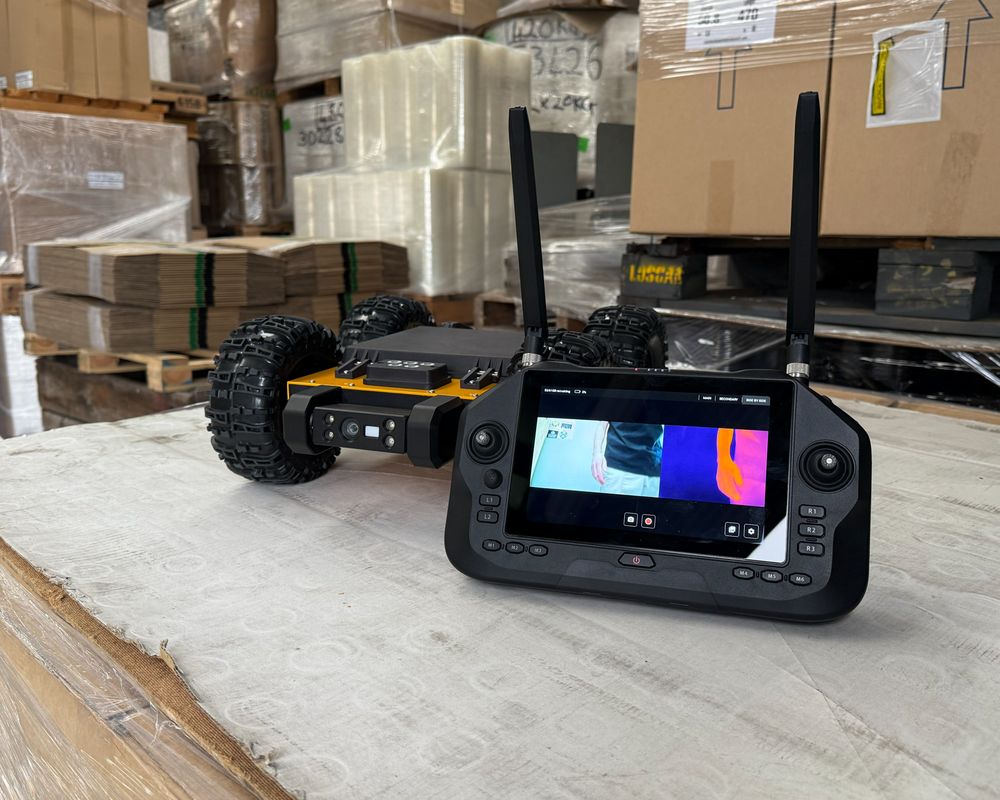

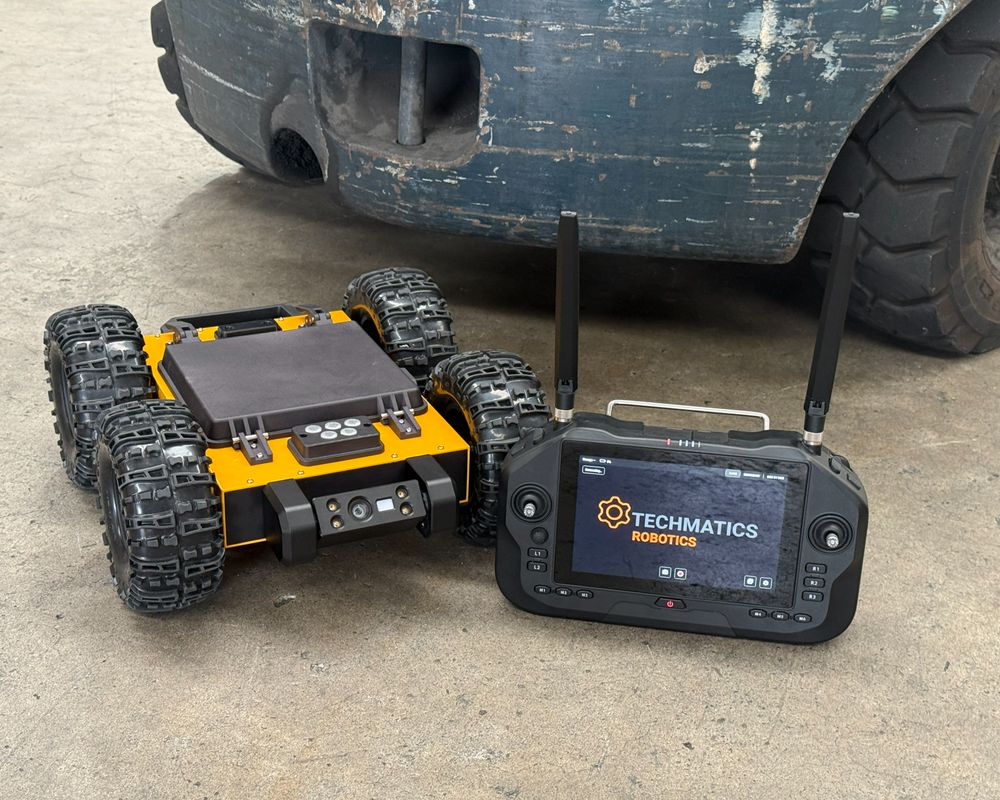

Remote Operation

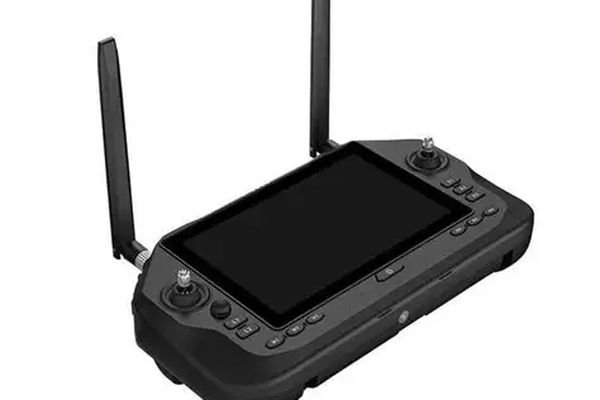

The robot is piloted through an intuitive control interface, allowing precise, real-time operation. A robust wireless transmission system provides a range of up to 400 m with low-latency video and data feedback. When equipped with the optional thermal camera, operators can view feeds from both cameras simultaneously, enabling quick and clear assessments of points of interest.
SPECIFICATIONS
- Dimensions:
- 400 mm (L) x 370 mm (W) x 165 mm (H)
- Weight:
- 4.8 kg
- Top Speed:
- 3.0 km/h
- Runtime:
- 1 Hour
- Max Incline:
- 45°
- Ground Clearance:
- 45 mm
- Transmission Range:
- Up to 400 m
- Resolution (Primary):
- 3840 × 2160p
- Resolution (Thermal):
- 192 × 256 p
APPLICATIONS
:format(avif))

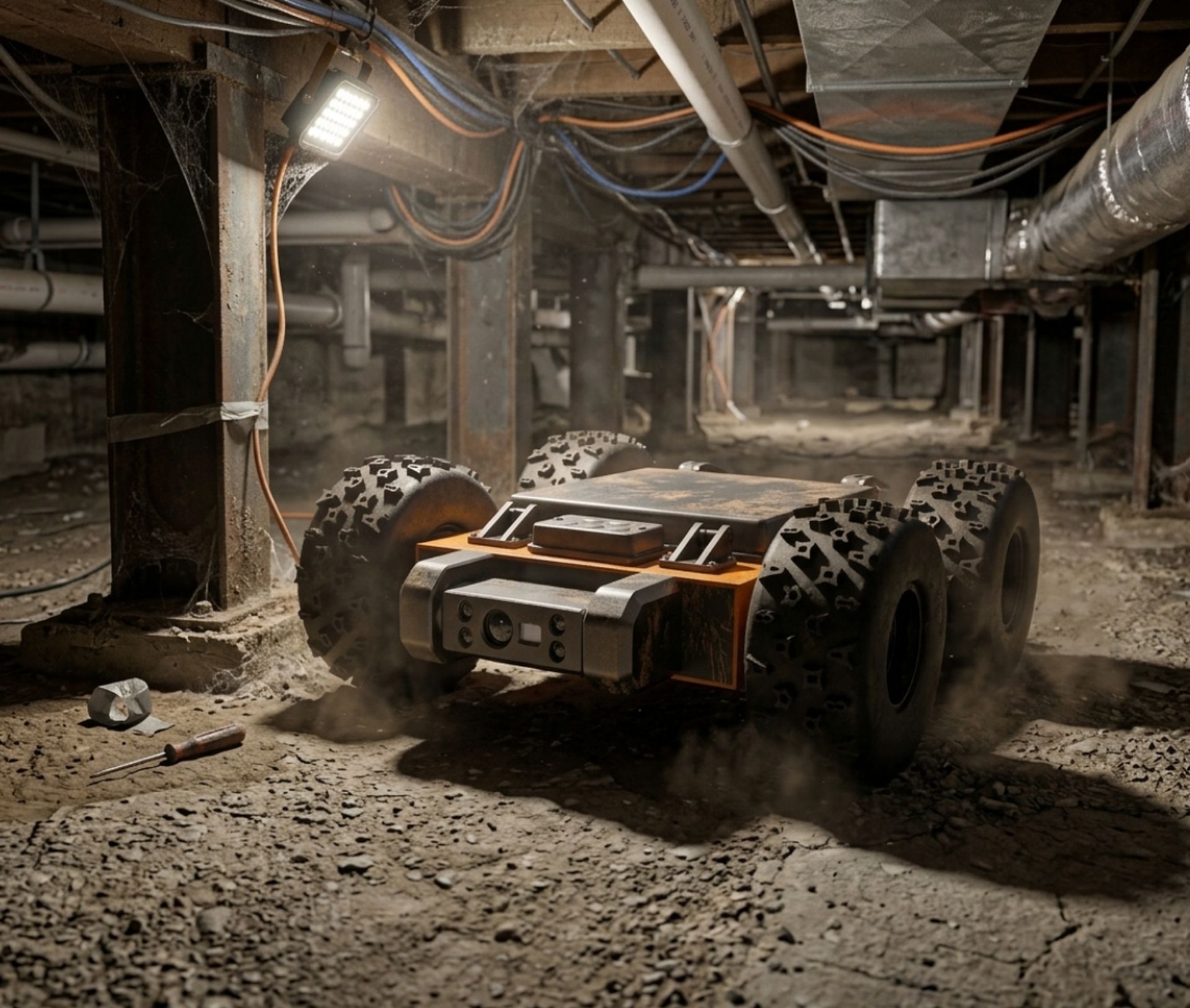

Subfloor Inspection

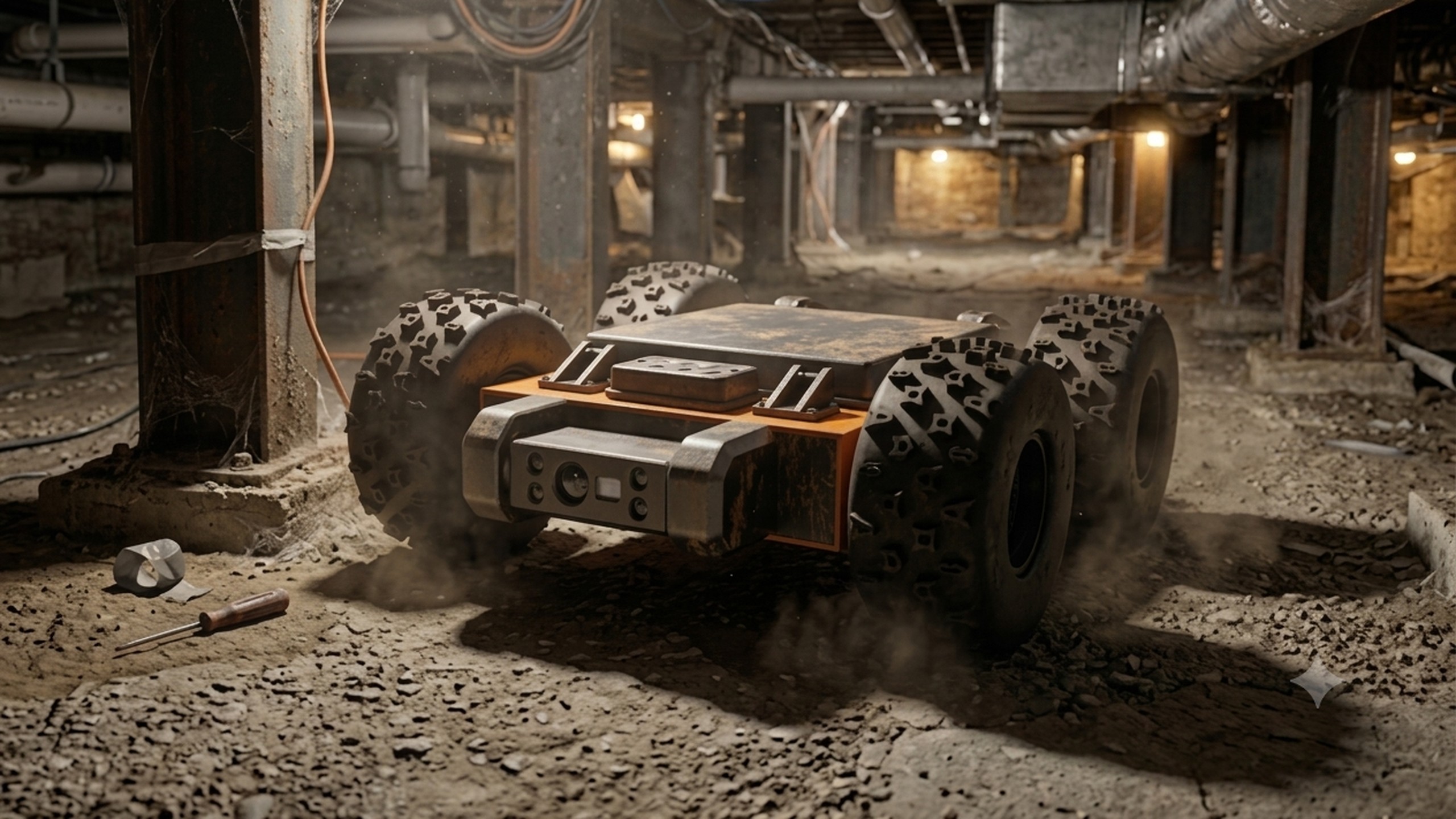

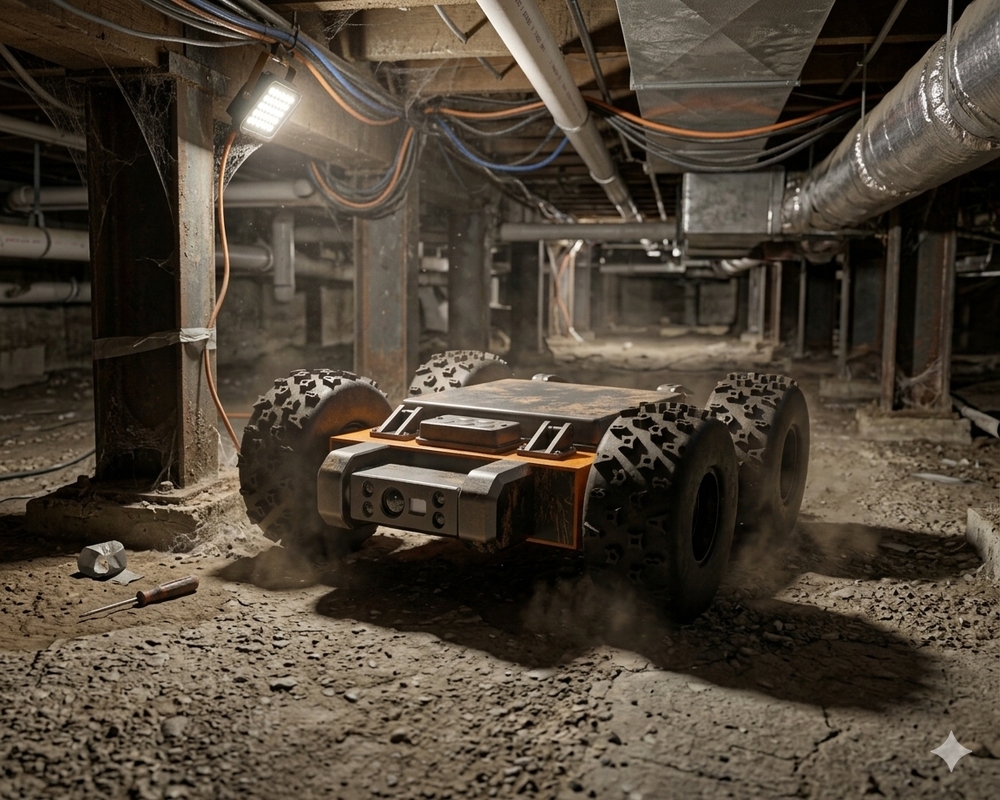

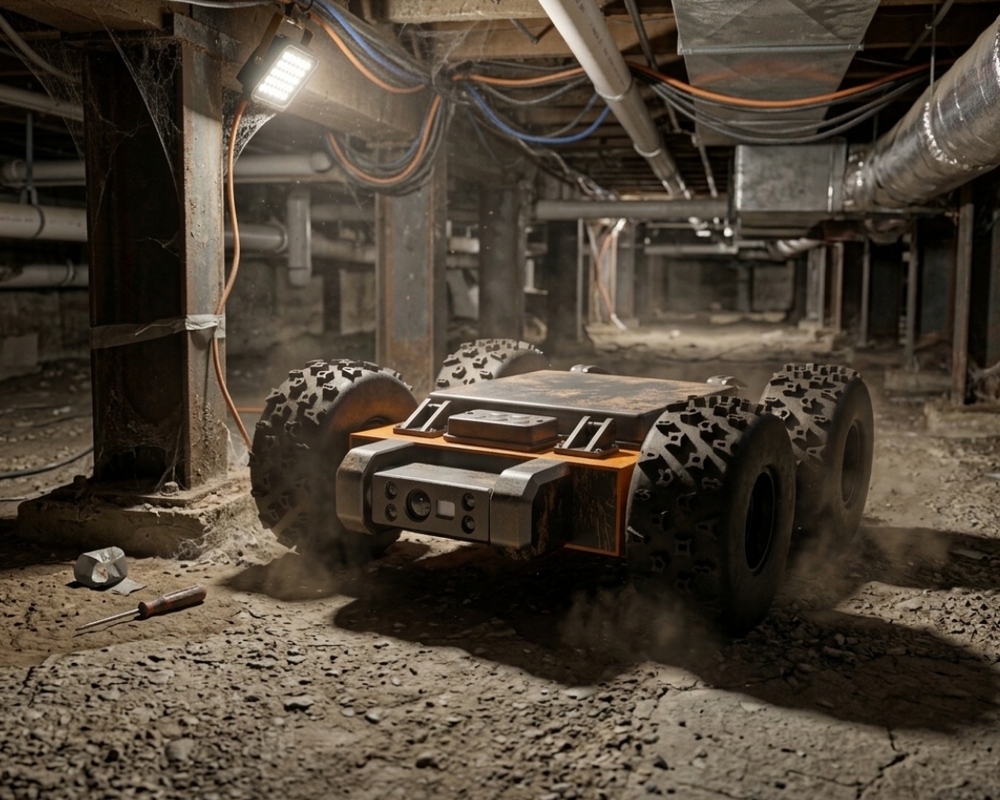

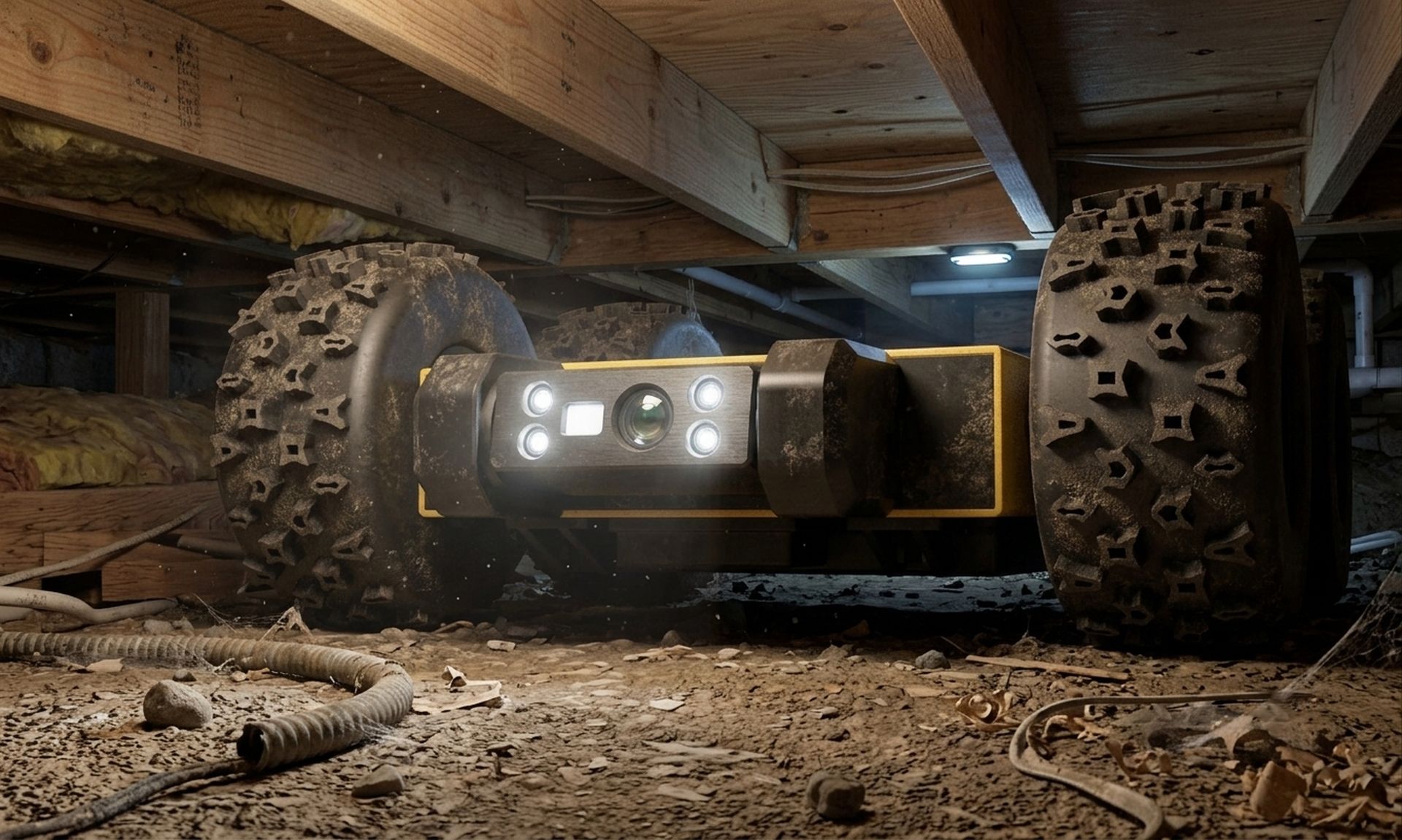

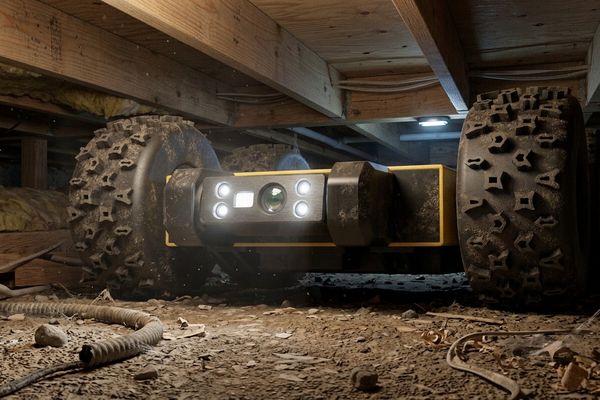

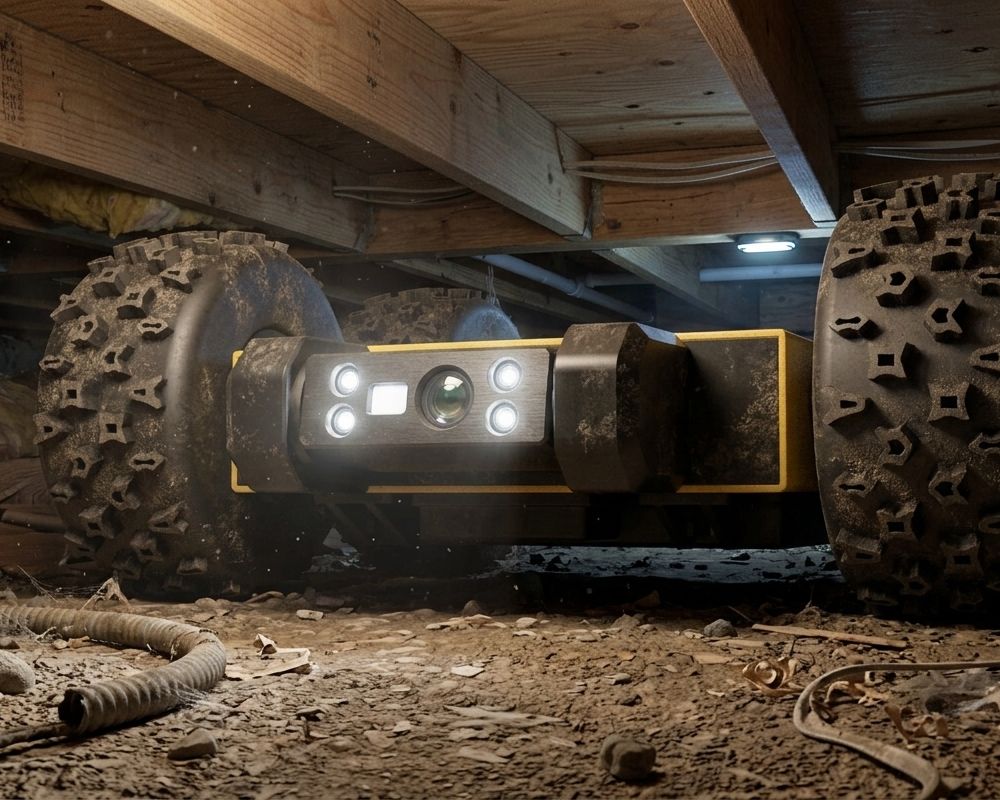

Hades enables efficient inspection of subfloor spaces by remotely navigating beneath structures and delivering real-time visual and thermal data. Inspectors can assess conditions such as moisture intrusion, insulation defects, pest activity, and structural irregularities without entering confined or hazardous areas. This approach reduces inspection time while improving safety and documentation quality.
