Pipe Inspection Made Easy
The Hades pipe inspection robot is built for stormwater, wastewater, and industrial pipelines, delivering clear video, precise reporting, and reliable field performance.
HADES Pipe Inspection Robot
Hades Pipe Inspection is a field-ready pipe inspection robot designed to help teams inspect pipelines efficiently, document condition clearly, and reduce the cost and disruption of manual access. It delivers stable, high-quality footage in low-light environments and supports consistent inspection workflows, from deployment through to captured evidence and reporting. Whether you’re assessing stormwater networks, wastewater lines, or industrial pipe runs, Hades Pipe Inspection is built to provide dependable performance where access is limited and conditions are unpredictable
FEATURES

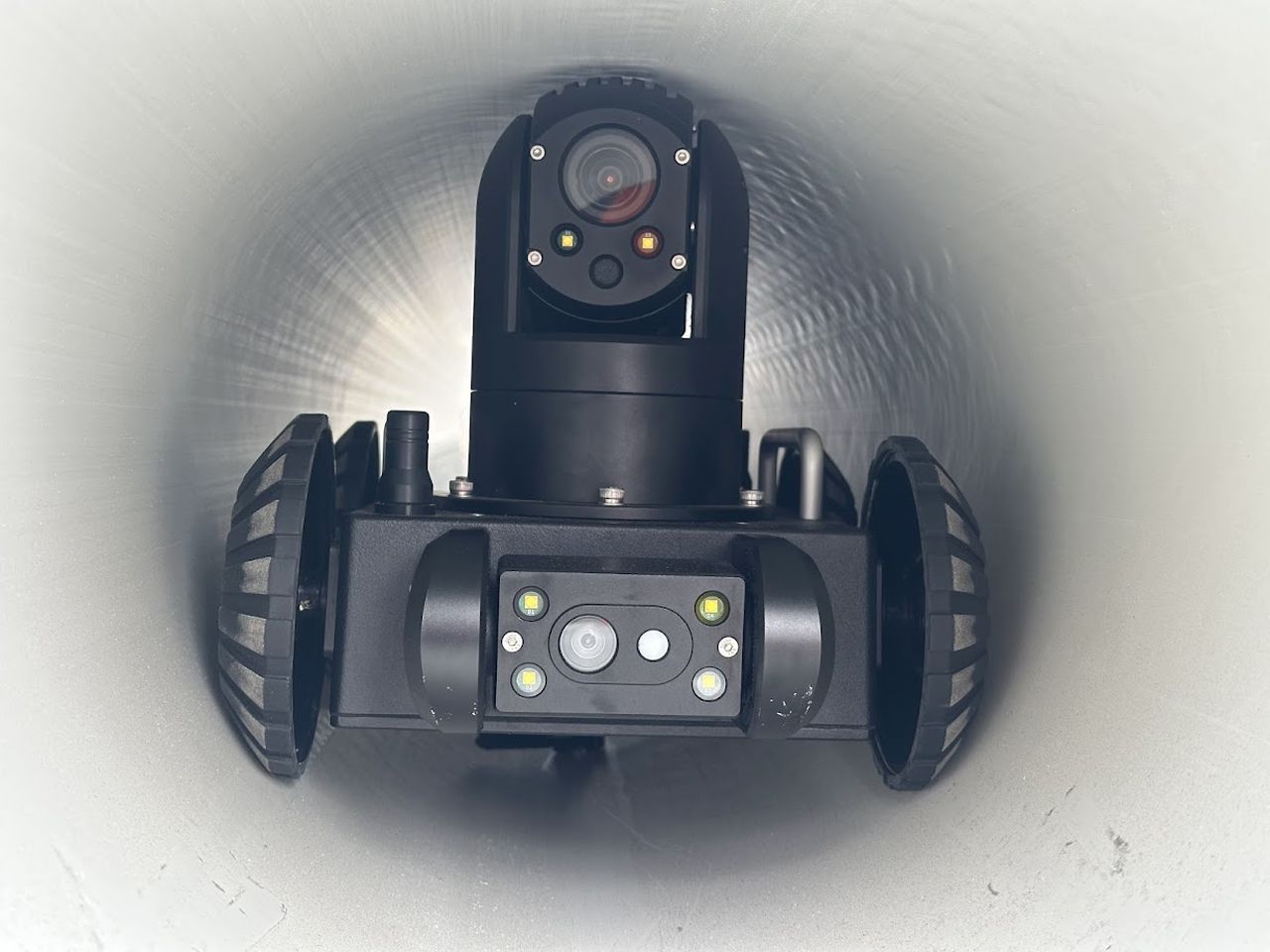

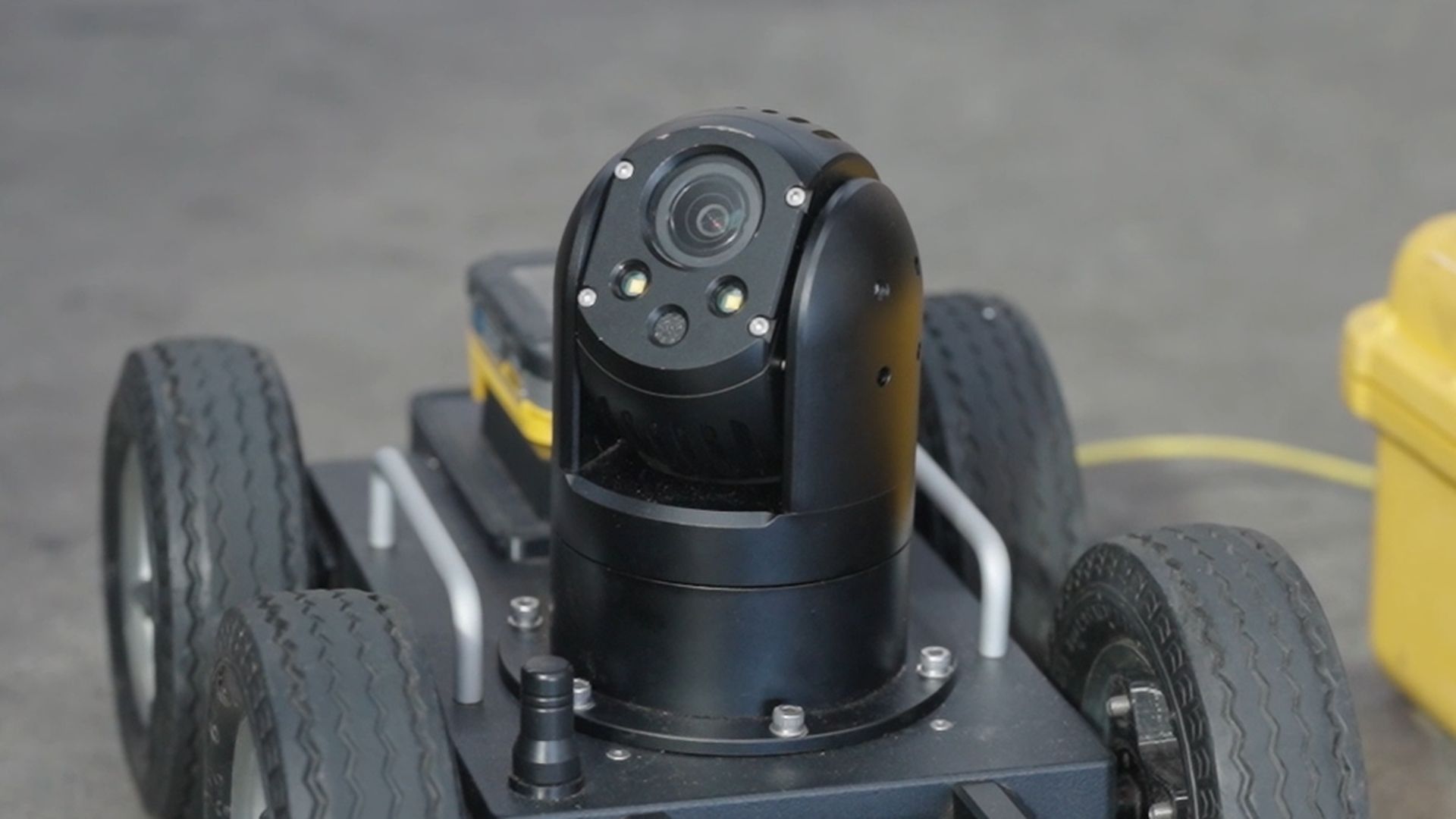

Pan-Tilt Camera Head
Hades Pipe Inspection combines a high-resolution 4K pan-tilt camera with a secondary 1080p tilting camera that includes thermal imaging. This gives operators both detailed visual coverage and an additional layer of thermal insight when conditions are dark, wet, or visually cluttered. Between the two viewpoints, it is easier to inspect surfaces, confirm points of interest, and capture clear evidence for reporting without constantly repositioning the platform.
Tethered or Wireless Operation
Operate Hades in the configuration that best suits the site. For extended reach and consistent connectivity, it can run tethered up to 100 m, supporting longer pipe runs and more controlled deployments. For faster setup and greater freedom of movement, Hades can also operate wirelessly, making it well suited to short inspections, confined areas, or locations where managing a tether is impractical.

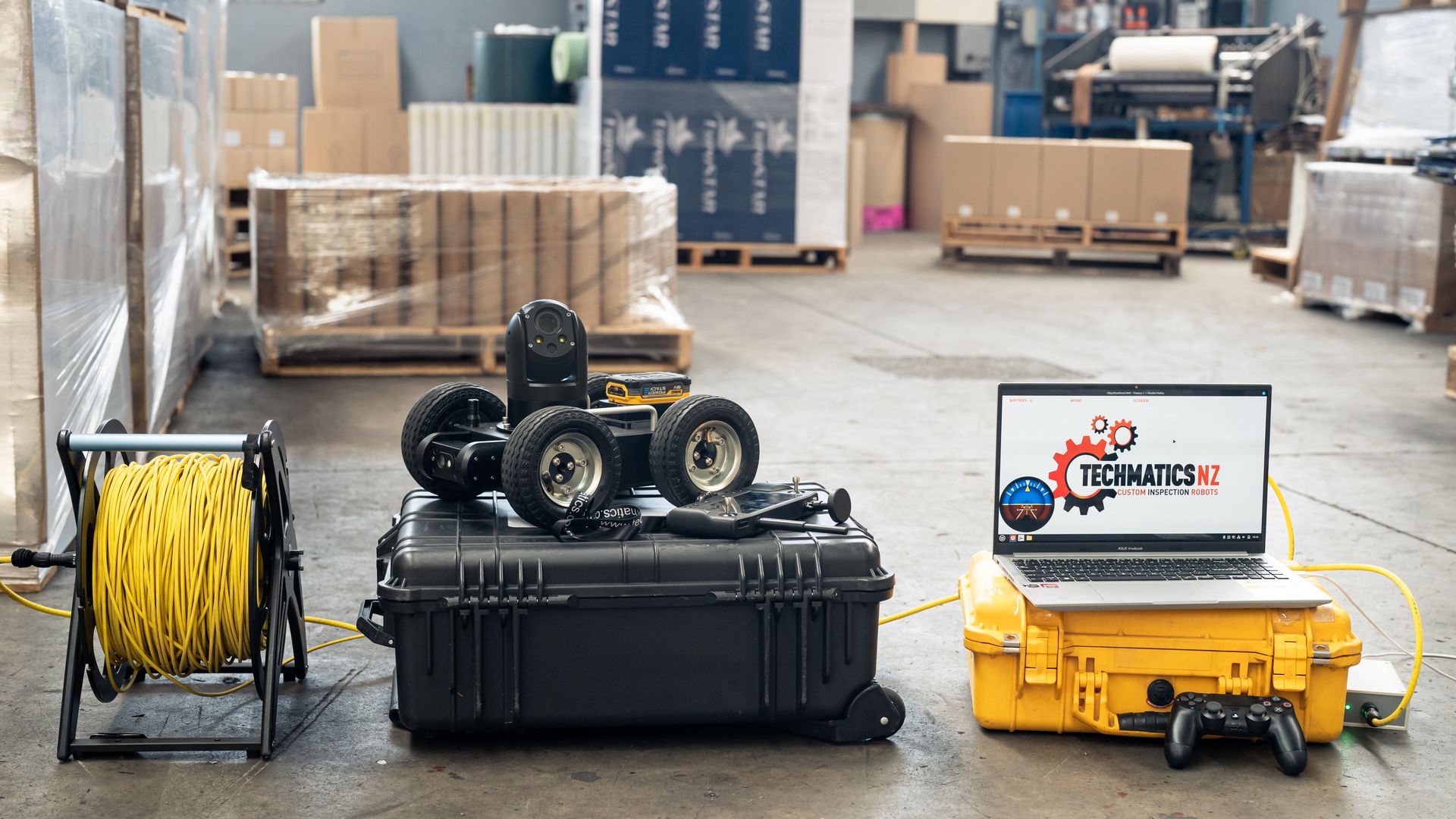

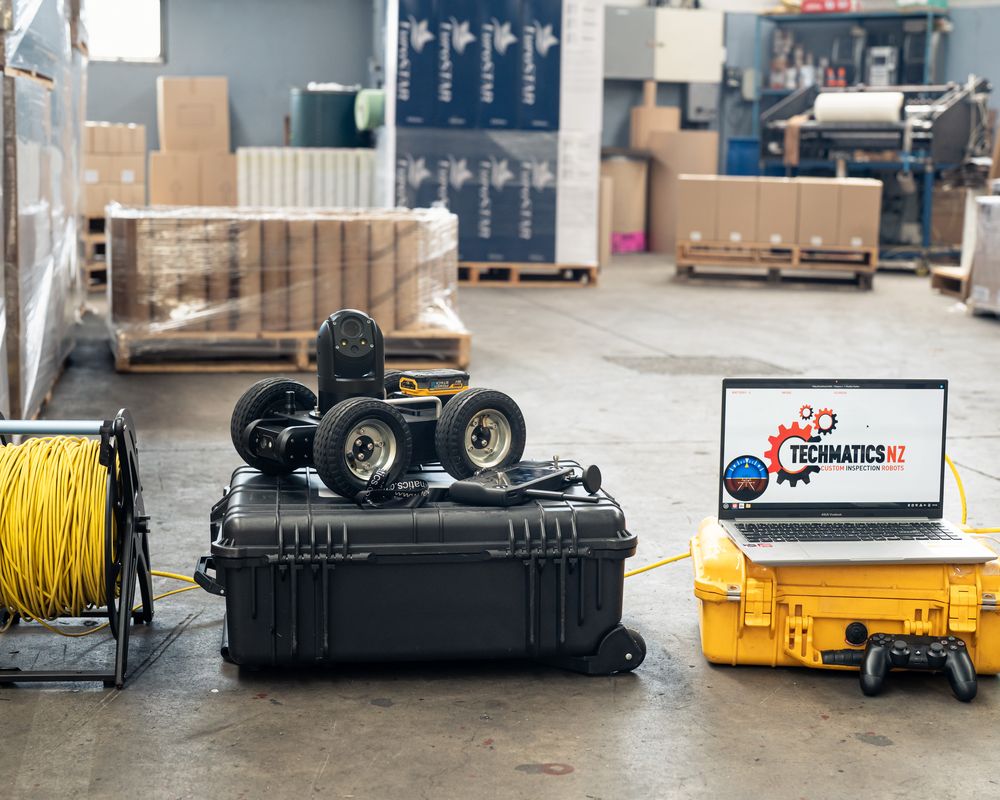

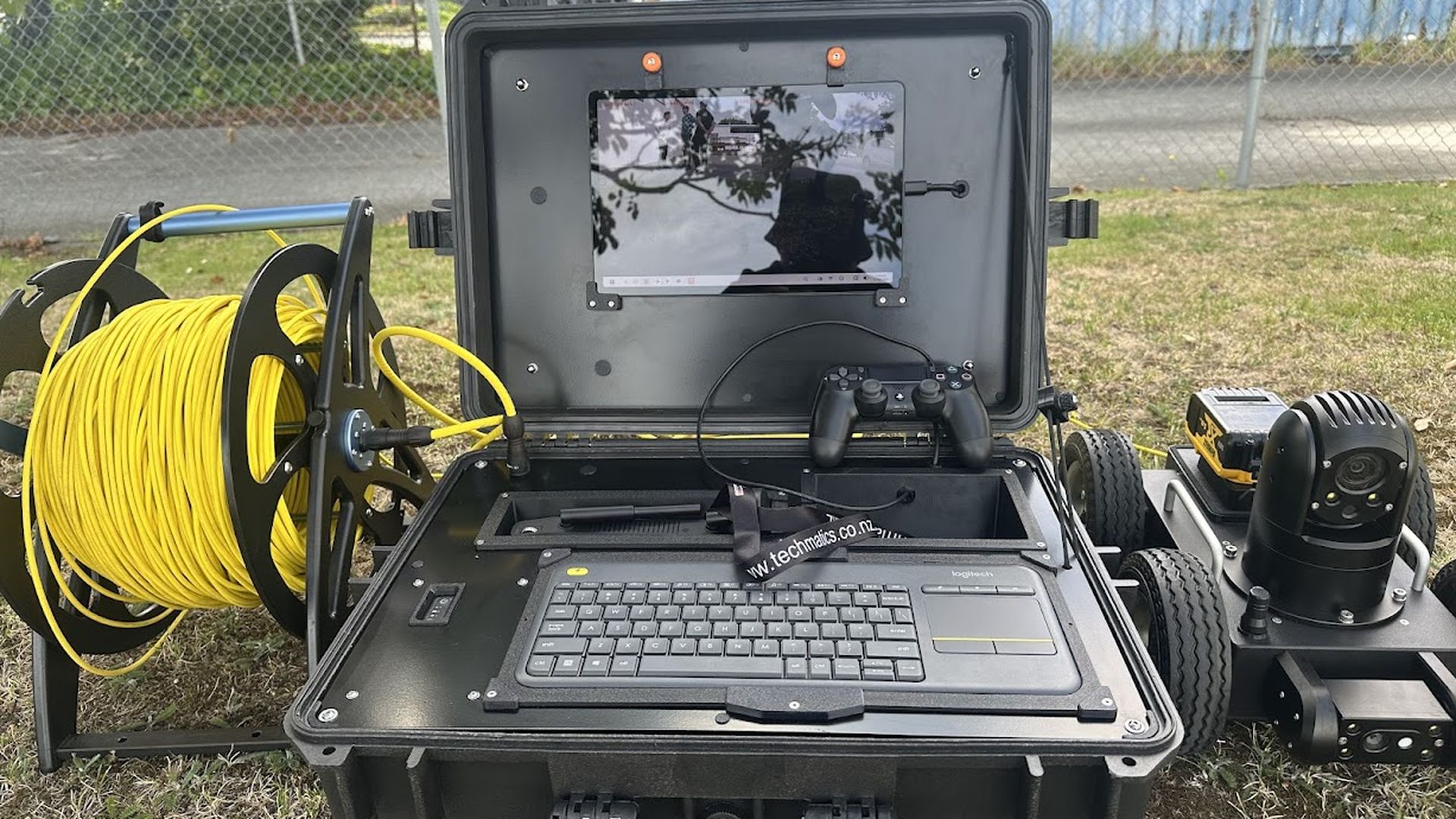

Rugged Carry Case and Deployment Station
The Hades Pipe Inspection Robot is supplied in a purpose-built carry case that protects the system in transit and keeps deployment organised. The case functions as a practical field station, providing a clean, repeatable setup with space for the robot, controller, accessories, and cables. This reduces setup time on site, improves reliability between jobs, and helps teams deploy consistently across different operators and locations.
SPECIFICATIONS

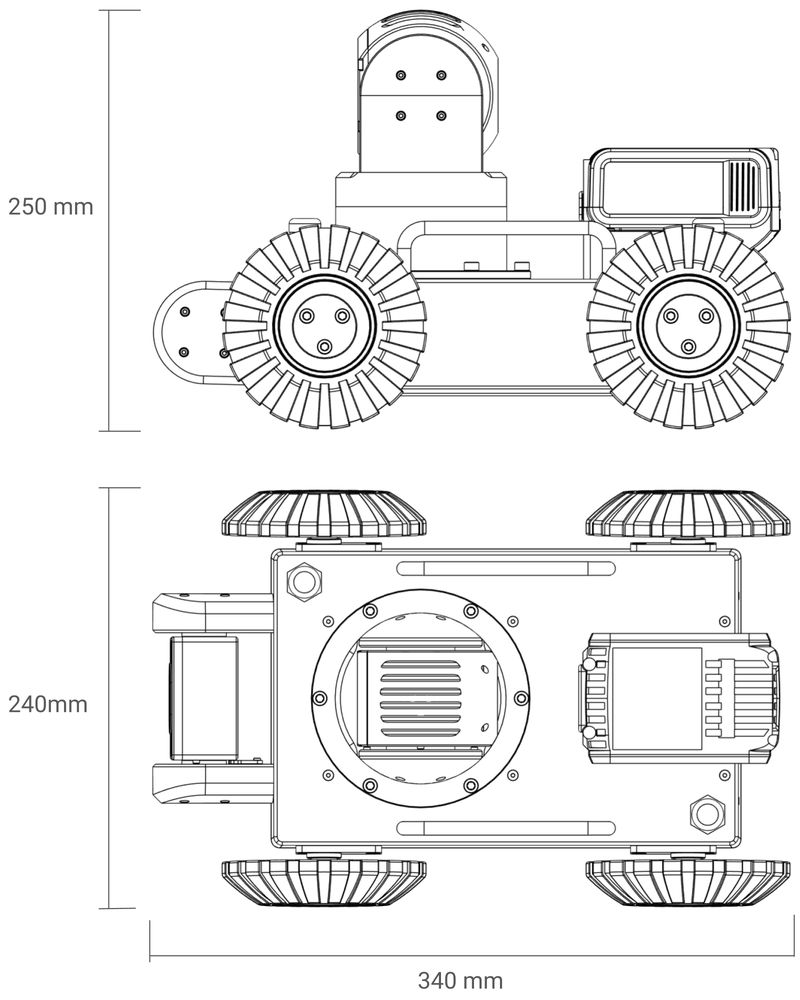

- Dimensions:
- 340 mm (L) x 240 mm(W) x 250 mm (H)
- Weight:
- 5.5 kg
- Top Speed:
- 2.0 km/h
- Runtime:
- Up to 2 Hours
- Tether Length:
- 150 m
- Transmission Range:
- Up to 400 m
- Resolution (Top Camera):
- 3840 x 2160p
- Resolution (Front Camera):
- 1920 x 1080p
- Resolution (Thermal):
- 160 x 120p
APPLICATIONS
:format(avif))
Stormwater and Culvert Inspections
Hades is well suited to routine inspections of stormwater lines and culverts where visibility is limited and access points are spaced apart. The 4K pan-tilt camera helps capture clear detail of joints, sediment buildup, and damage, while the option to run tethered supports longer runs when consistent connection matters. This makes it easier to document condition accurately and prioritise maintenance.
Gallery
